This yields high-speed stage translation without vibration, maximizing measurement throughput. A solid granite bridge design platform rests on a sturdy, steel support structure. SmartScope® Quest™ 450 – An extremely accurate floor-stand coordinate measurement system designed to incorporate optical, touch probe, micro-probes and the patented TeleStar® telecentric TTL laser for versatility and accuracy. Both the 450 and 450 with extendable Y are designed to measure larger parts or to accommodate fixtures of multiple parts or rotary indexers.
#Smartscope quest 250 software#
It also comes standard with MeasureMind® 3-D MultiSensor metrology software that accepts data points from all sensors and builds a model in 3-D space.
It offers a unique “elevating bridge” design that yields large XYZ travel with compact machine size. Axial straightness and perpendicularity are built in to meet stringent volumetric specifications and patented telecentric TeleStar 10:1 metrology zoom lens utilizes interferometric technology to provide excellent optical performance over its entire range. Add optional TeleStar® telecentric interferometric through-the-lens (TTL) laser, touch probe or micro-probe to configure a highly capable multisensor system. With an expansive XYZ measurement volume to accommodate large parts, it combines state-of-the-art video and autofocus to deliver high productivity.
#Smartscope quest 250 full#

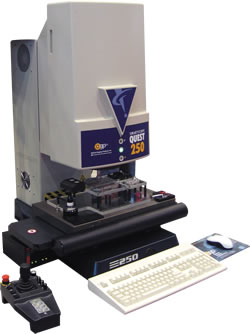

OPTICAL GAGING PRODUCTS, INC.The SmartScope® Quest™ is a high-accuracy metrology system designed to use a variety of sensors for full 3-D measurement.
Add a touch probe to access difficult-to-image or otherwise inaccessible features, to more fully characterize parts in a single setup. MVP features full field-of-view image processing with advanced edge detection algorithms designed for repeatability in real-world applications. SmartScope MVP features a joystick-controlled precision mechanical bearing XYZ stage, with 0.5 m (X and Y axes) and 1.0 յm (Z axis) linear glass scales mounted on a metrologically stable granite base and column. Surface and back lighting in conjunction with a high-resolution color camera provide high contrast, true-color images. Optional screw-on lens attachments expand the magnification range ٖ a low cost way to increase system versatility. A precise 6.5 to 1 automatic zoom lens with ample 80 mm working distance keeps images in focus and on-axis throughout the zoom range. Automated SmartScope MVP systems are equipped with servo-driven motorized stages, and use OGPΒs powerful and intuitive Measure-X > metrology software, for completely automated inspection and/or measurement. SmartScope MVP metrology system is a cost-effective way to get the benefits of automated video-based inspection and measurement from the leading name in the industry Ζ Optical Gaging Products (OGP company).
